Copper Smelter Plant


Overview

PT. Merdeka Copper Gold Tbk. is a holding company that operates in mining industry. The project was commissioned by PT. Merdeka Copper Gold Tbk. requesting to provide FRP Tanks that can withstand harsh sulfuric acid environment during the smelting of ore. The smelter was located at Wetar Island, East Indonesia where the "Batu Tua Tembaga Raya" mine yields LME Grade A Copper cathode, known for its high purity. This project is also supported by AOC Resins, a leading global supplier of specialty formulations and solutions .

Solutions

H₂SO₄ Tank

Specifications:

  • Diamter: 5 m
  • Height: 5 m
  • Units: 3

Oversize Buffer Tank

Specifications:

  • Diameter: 12 m
  • Height: 3 m
  • Units: 1

Electrowinning Cell Tank

Specifications:

  • Refurbishment task
  • Size: 3.5 m x 1.2 m x 1.5 m (L x W x H)
  • Units: 77

Settler Basin

Specifications:

  • Size: 18.5.5 m x 13.5 m x 1 m (L x W x H)
  • Units: 5

Technology

  • Filament Winding System
  • Standards: ASME-RTP1, ASME D-3299

Gallery

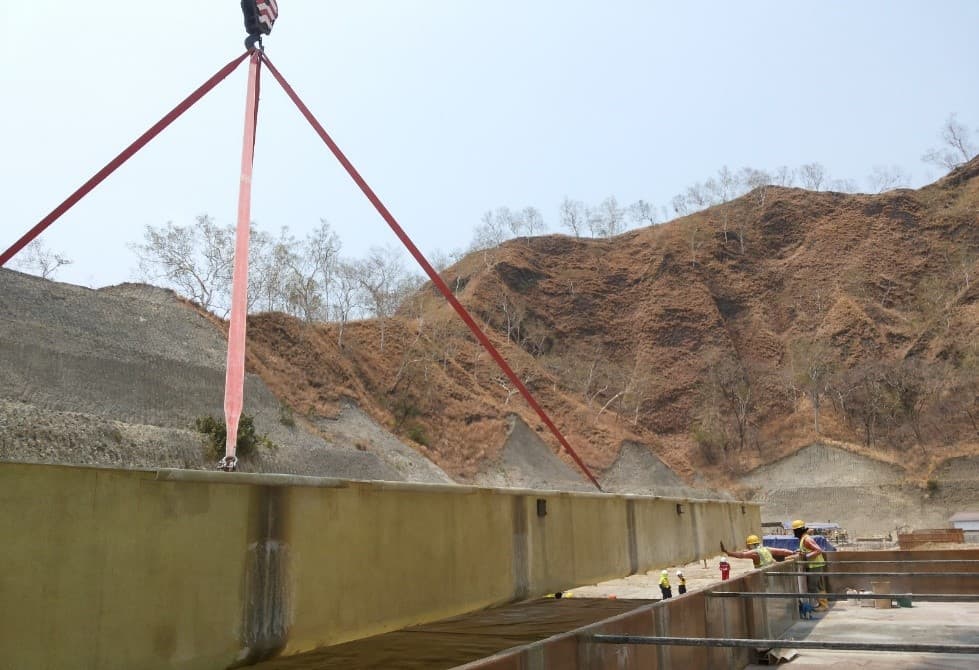

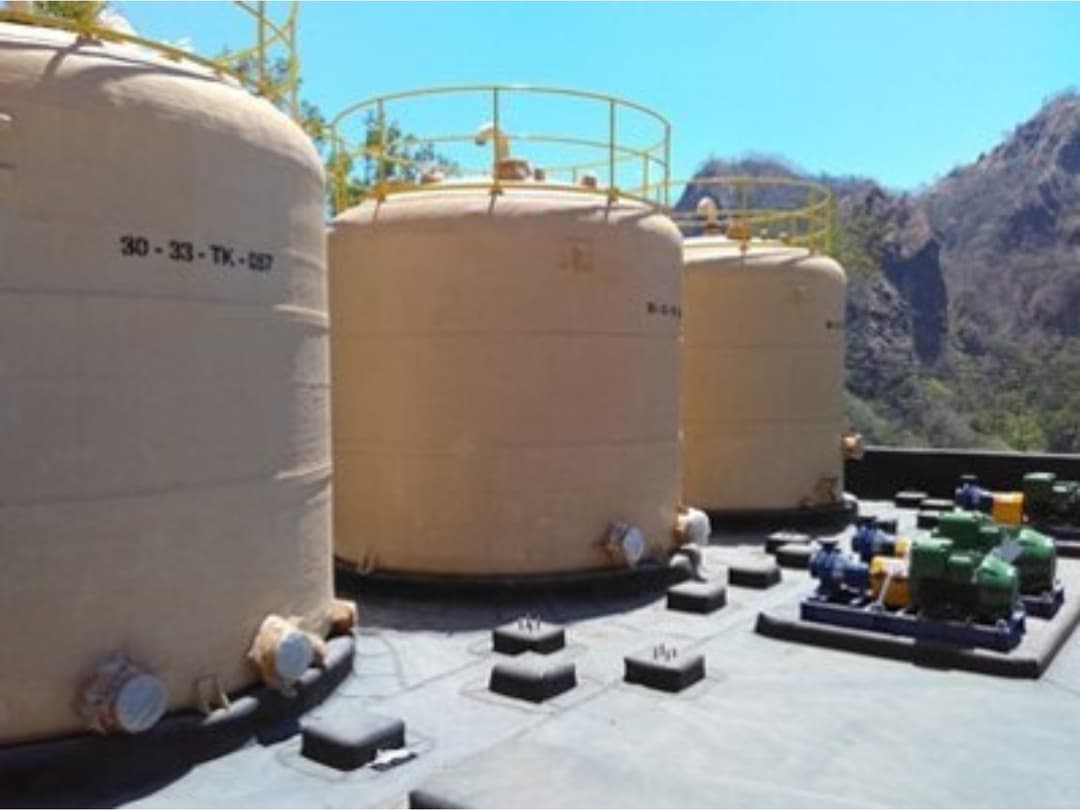

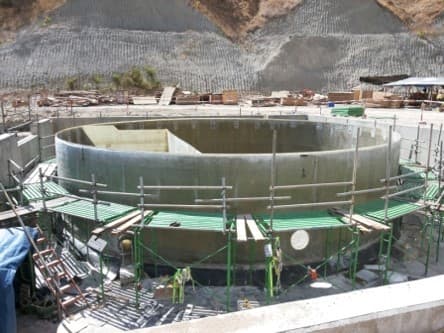

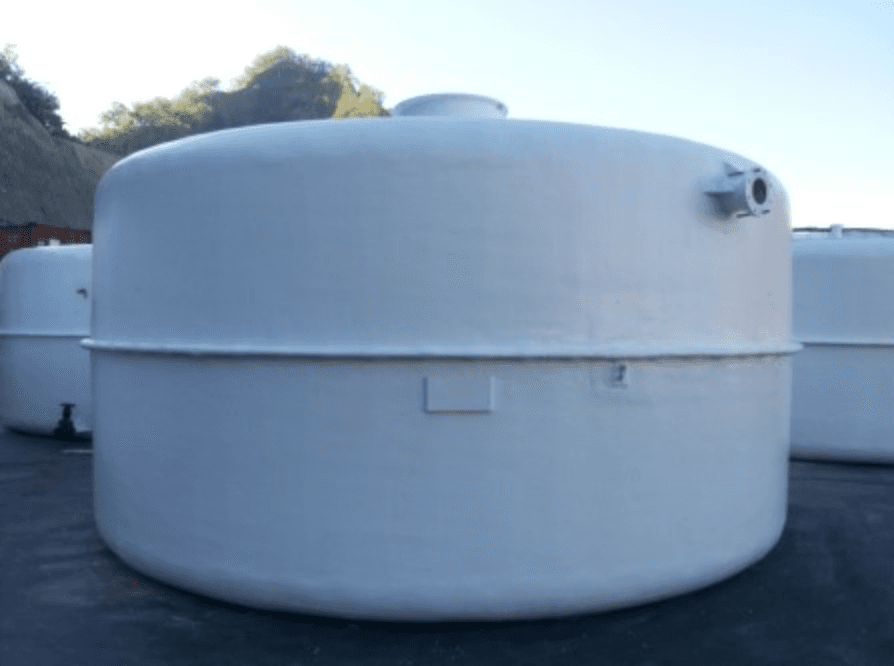

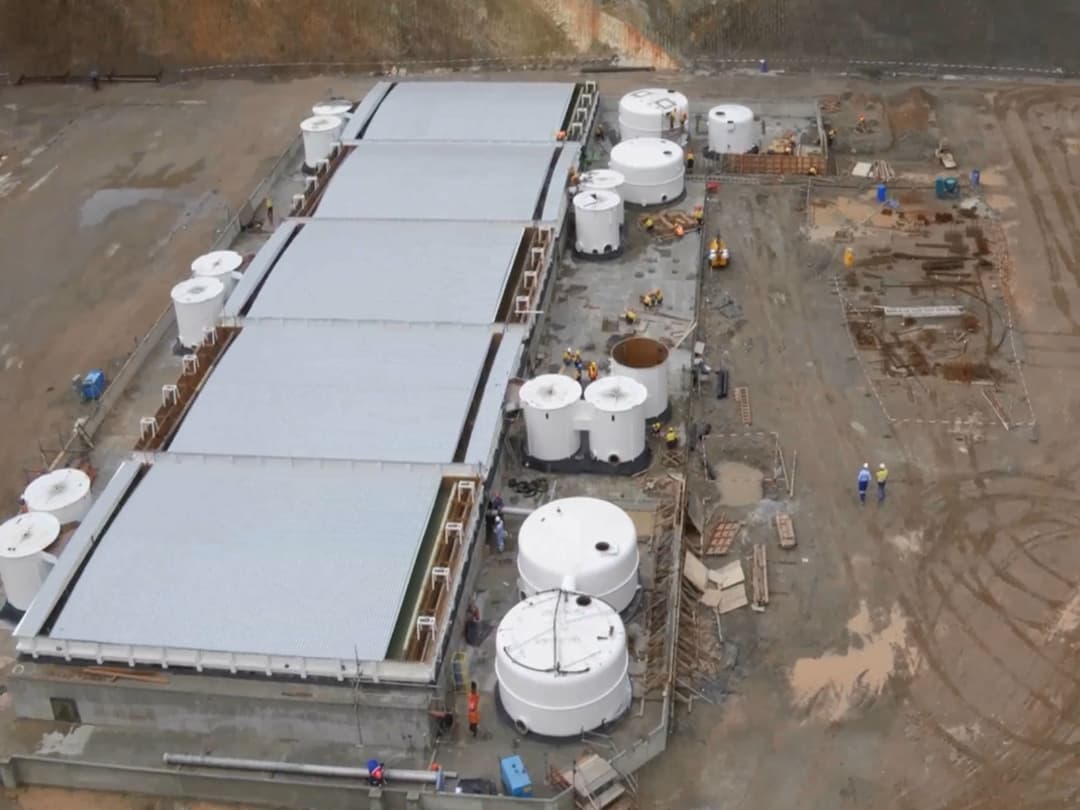

Smelter Tank
Smelter Tank
Smelter Tank
Smelter Tank
Smelter Tank
